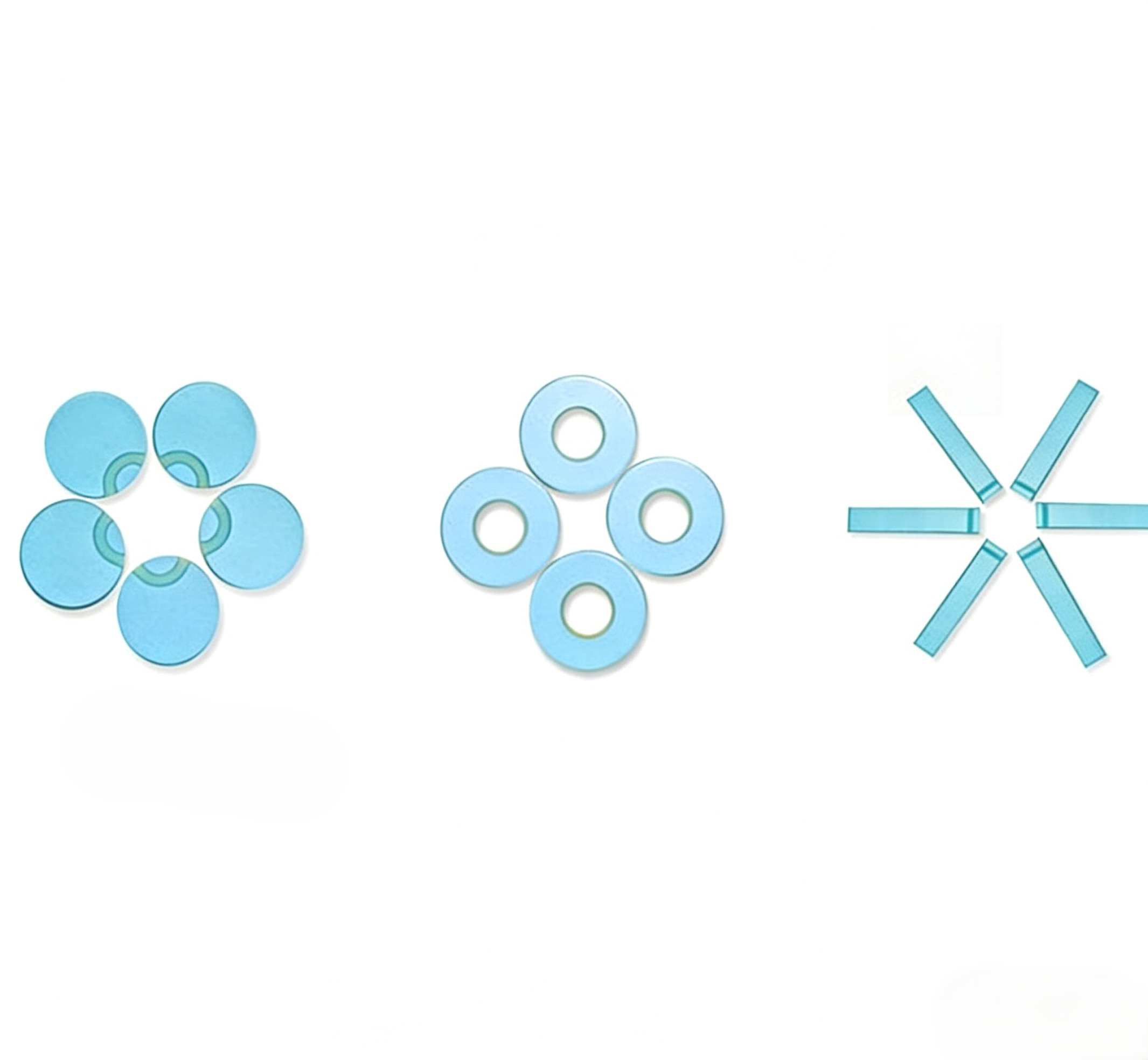

Piezo Ultrasonic Transducer /压电陶瓷超声波换能片

Details

  • Product Details
  • Technical Parameter
  • Case Presentation

  • 应用Application

    •流量传感器                                 •Flow sensor
         •    液位检测传感器                     •Liquid level Detection sensor

    •超声美容仪                            •Ultrasonic Beauty Instrument


  • 产品名称 Name压电陶瓷超声波换能片
         Piezo Ultrasonic Transducer
                 性能Performance

             型号Model    		     尺寸Dimensions
             DXT
             (mm)    		    共振频率Resonant
            frequency
             Fs(MHz)    		 电容Capacitance
             CT(nF)
            @1V,1KHz    		 电机耦合系数Electromechanical
         coupling coefficient
         (Kt/Kp)    		 应用Application
    HNYA10-2.0-1∅10x2.01±5%0.6±15%Kt=45%•流量传感器                                 •Flow sensor
         •    液位检测传感器                     •Liquid level Detection sensor
    HNYA12-1.0-1∅12x1.02±5%1.5±15%Kt=45%
    HNYA12-2.0-1∅12x2.01±5%0.8±15%Kt=45%
    HNYA16-0.41-1∅16x0.415±7%2.5±25%Kt=48%•超声美容仪                         •Ultrasonic Beauty Instrument
    HNYA16-0.52-1∅16x0.524±7%2.0±25%Kt=50%
    HNYA20-0.41-1∅20x0.415±7%7.9±25%Kt=56%
    HNYA20-0.67-1∅20x0.673±7%5.2±25%Kt=56%
    HNYA25-0.41-1∅25x0.415±7%12±25%Kt=56%


    $
